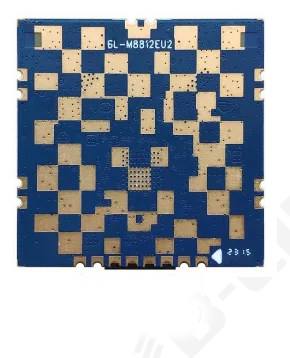

BL-M8812EU2 Wi-Fi Module (RTL8812EU)
BL-M8812EU2 is a high-performance single-band Wi-Fi module based on the Realtek RTL8812EU-CG chip, designed to operate in the 5 GHz band. It supports the IEEE 802.11a/n/ac standards and provides data rates up to 867 Mbit/s. The module supports several channel-width modes: 5 MHz, 10 MHz, 20 MHz and 40 MHz (reception). Thanks to its integrated power amplifier and narrowband modes, it is ideal for long-range wireless video transmission — in particular for FPV drones and IP-camera systems.
INFO
If you get no image after enabling 40 MHz mode, please read this article to solve your problem.
Module pinout
| Pin № | Function |
|---|---|
| 1 | GND (Ground) |
| 2 | USB 2.0 D+ |
| 3 | USB 2.0 D- |
| 4 | GND (Ground) |
| 5 | RESET |
| 6 | 5 V power input |
| 7 | 5 V power input |
| 8 | GND (Ground) |
Technical characteristics
| Parameter | Value |
|---|---|
| Chipset | Realtek RTL8812EU-CG |
| Interface | USB 2.0 |
| Frequency range | 5.15–5.85 GHz |
| Wi-Fi standards | IEEE 802.11a/n/ac |
| Antenna configuration | 2T2R (2 antennas, 2 receivers) |
| Channel width | 10/20/40/80 MHz |
| Max. speed | Up to 867 Mbit/s |
| Antenna connectors | IPEX (MHF-1) |
| Power | 5 V ±0.25 V, up to 1.8 A |
| Module dimensions | 32 × 32 × 3.4 mm |
| Operating temperature | -20°C to +70°C |
| Humidity | 10%–95% (non-condensing) |
Module specifications
| Parameter | Value |
|---|---|
| Connection interface | USB 2.0 |
| Power | 5.0 V ±0.25 V, up to 1800 mA |
| Antenna connectors | 2 × IPEX (MHF-1) |
| Output power | ≤ 29 dBm (≤ 800 mW) |
| Supported modes | 5 MHz, 10 MHz, 20 MHz, 40 MHz (RX only) |
